| A DIGITÁLIS JELFELDOLGOZÁS ESZKÖZEI
Adatkonverterek: "A/D és D/A átalakítók" |
|
|
Pápay Zs.: ADATKONVERTEREK (az analóg "átjáró") · pdf
Adatkonverzió ( szemlélet )
Learning by simulations: ADconversion · SamplingTheorem
The origins of the sampling theorem · Sampling formulas · Nyquist was just an alias · Nyquist limit

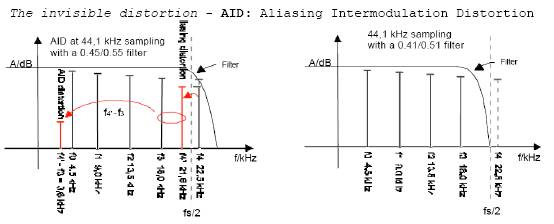

Aliasing demo1 / demo2 · AID · Sample rate conversion
· Aliasing suppression in an ideal ADC · pdf
· Harmonic images in an ideal DAC · pdf

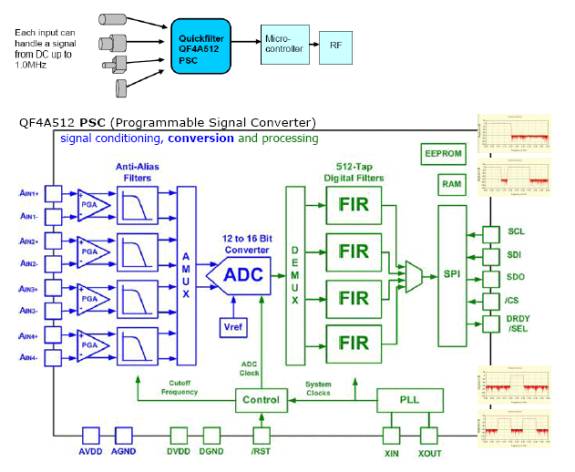

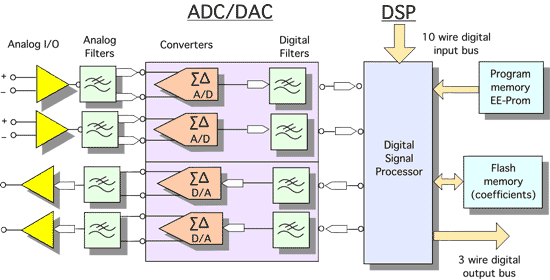

Sensor interface : programmable signal converter / QuickfilterTech

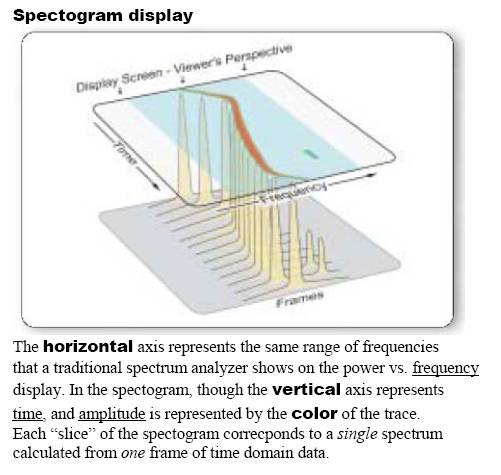

Characterizing mixed signal DSP designs · spectogram / SpecDyn
Applications: http://www.analog.com/en/sIndex.html , http://www.ti.com/ (DataConverters - BlockDiagrams ),
http://www.maxim-ic.com/ (Solutions), http://www.national.com/signalpath/
HF1: · 1.3(a) feladat ( pdf 1 , 2 , pdf3 )

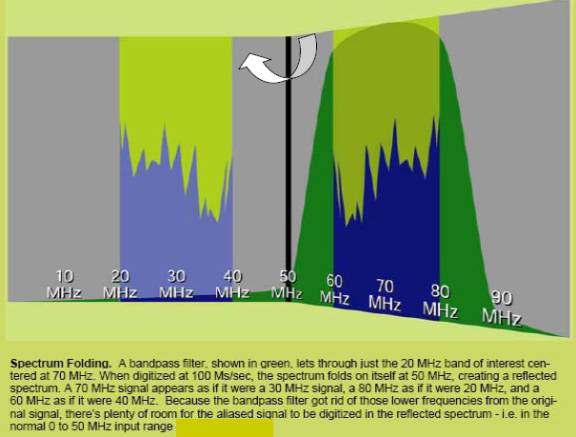

( folding · IF interface · carrier · Doppler sonar · Range finder · nonlinear · multi-band1A 1B , algorithm 1 2 3 · multi-band2 )
· Lehet-e egyidejűleg alul- és túl-mintavételezés?
· TSIUQYN rule ( "Connect the Dot" ) : max hiba ? ( %, "sine: Miss the Peak" )
Zaj csökkentés / DSM ( NS: noise shaping )

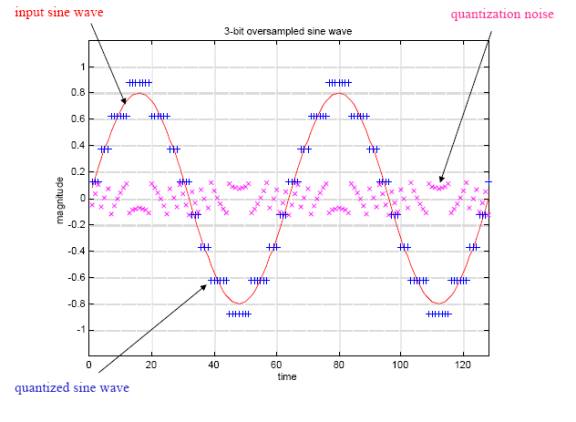

Q-error / Q-noise · SQNR kontra SFDR · avi: Q-noise spectrum ( sine, f/fs = 1/8, 1/16 ...) · dither1 / dither2
· Sigma-delta ADC tutorial · pdf
DSM topológiák · delta-sigma DAC1 / DAC2 · delta-sigma ADC
Analog/DSP real-world signal conditioning / FreqDev
Expanding · Flicker-free bits vs. effective resolution · Effectiveness of averaging ( code )
HF2: 2.2 feladat ( pdf )
( But which name ? · Introduction to DSM · Are SD ADCs Greek to You ? · Demystifying SD ADCs )
Konverter minősítés ( " ABC leves " )

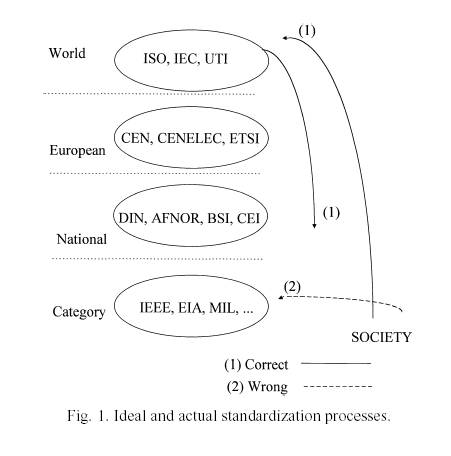

ADC errors · Standards · harmonization 1 / 2
Defining and testing dynamic parameters · Coherent sampling calculator / pdf1 / pdf2
A basic guide to the AC specification of ADCs ( part 3, 4 )
SNR - THD - SINAD calculator / pdf · Data conversion calc2 / calc3
· ADC test data evaluation program ( MATLAB ) · pdf
DACs/ADCs test drive
Understanding high speed DAC testing and evaluation
Understanding high speed ADC testing and evaluation
· ADIsimADC virtual evaluation tool ( pdf1 , pdf2 ) / on WEB · ADC's effective Noise Figure (NF)
16 bit · 100MSPS · ADC jitter · FOM / "close to the ideal ADC" · Performance trends: 1999 / 2005 / 2006 · digital_IF
HF3: spektrum-elemzés - INL vs. SFDR
( INLfromFFT · Chebyshev_test )

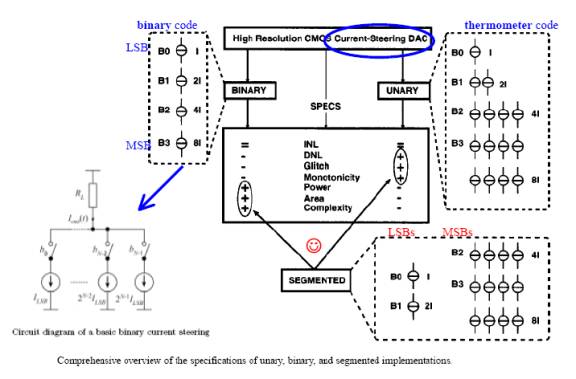

D/A átalakítók ( current steering topologies )
Flatten DAC frequency response
LTC1599 segmented ladder DAC - multiplying / Linear
Lab grade 20-Bit DAC
AD9772A interpolating DAC - image reconstruction / AnaDev
· Harmonic images in the interpolating DAC · pdf
MB86060 DAC / Fujitsu · Benchmarking DACs for communications

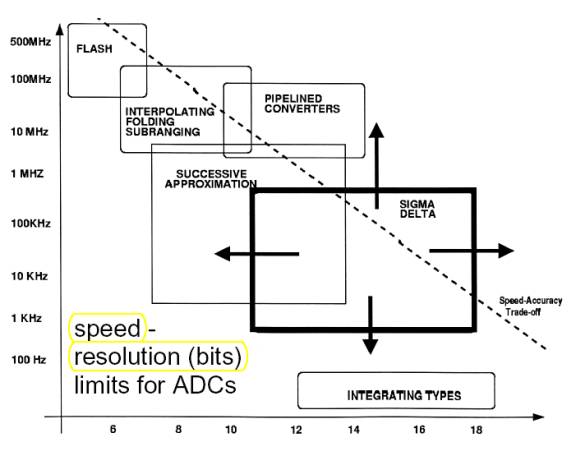

A/D átalakítók ( architectures )
Designing antialias filters for ADCs
MAX1292 SAR ADC - multiplexing / Maxim
mpeg: an animation of the DAC waveform in SAR ADC
SAR ic : DM2504 [discontinued] / DM54L502 / MM74C905 / MC14549B
THS1206 pipeline ADC - simulteneously sampling, FIFO / Texas
Higher data throughput for DSP ADCs · Simultaneous sampling DAQ architectures / Power-line monitoring
A methodology of interfacing serial ADCs to DSPs · HiSpeed serial IF
NI5911 flexADC · Flex2ADC / NatInst
Performance enhancement · Avg vs. TI · Time Interleaved (TI) ADC · Mismatch effects individual 1 / 2 - combined 1 / 2
Quantization Interleaving (QI) ADC - Time Synchronized (TS) ADC
Selecting : resolution, sample_rate
Data converter chips: pdf · suppliers
Paradigm shift ( in sync with the digital revolution ) , The case of SI | Signal compression ( SignalZIP ) , Samplify Systems - articles
Data converters - Books
